How to Create an MTConnect Agent DataSource Client

This guide provides step-by-step instructions on how to create a data source client using the Exalens platform. The client will connect to an MTConnect Agent to collect and store data, which can then be visualized using table and chart views.

Connect​

Create a New Data Source​

On the Exalens dashboard, navigate to the "Datasources" section.

Datasource

Click on the "Create Datasource" button.

Create a New Data Source

Select MTConnect Agent​

A dialog box titled "Select Datasource" will appear. Choose "MTConnect Agent" from the list of available options.

Select MTConnect Agent

Configure the MTConnect Agent Connection​

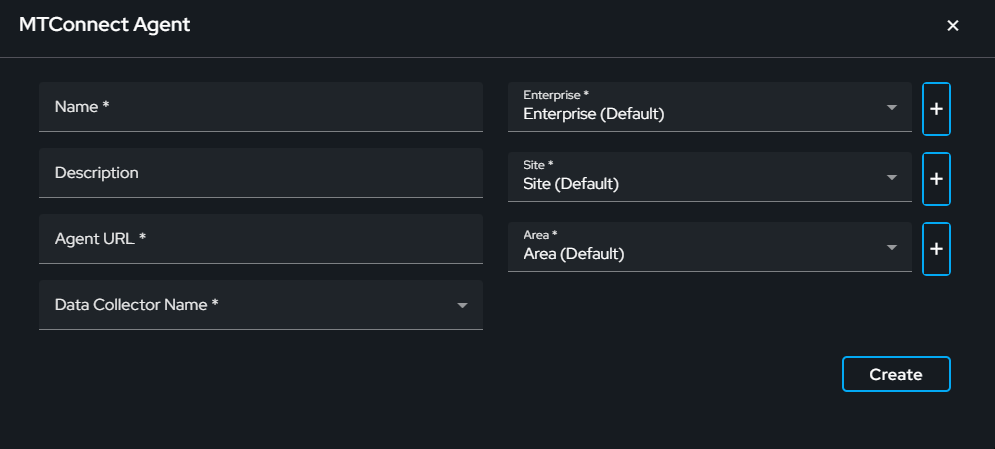

Fill in the details for the MTConnect Agent in the provided fields:

  • Name: Enter a descriptive name for the data source.
  • Agent URL: Input the agent URL.

MTConnect Agent

Data Collector Name​

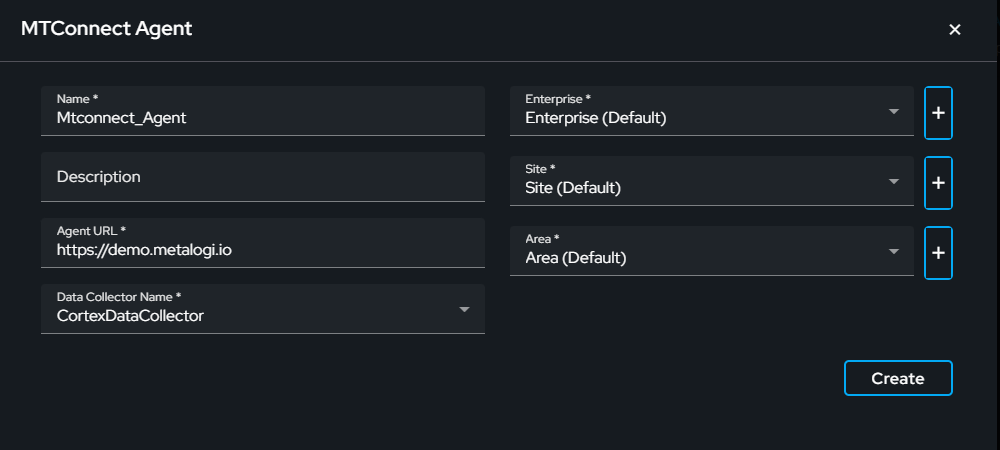

Selecting the correct Data Collector is crucial. Ensure you choose a Data Collector that has network access to the MTConnect Agent. The client runs on the Data Collector, establishing the connection with the MTConnect Agent. All installed Data Collectors will be listed in the dropdown menu.

Data Collector Name

Create the Data Source​

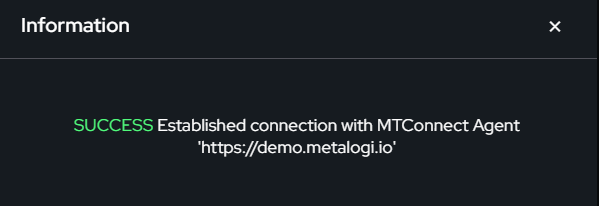

After configuring the agent connection details, click the "Create" button. This action establishes a persistent client connection with the MTConnect Agent. A confirmation message will appear indicating a successful connection. If the connection fails, verify your agent URL and network settings, then try again.

Create Data Source

connection success

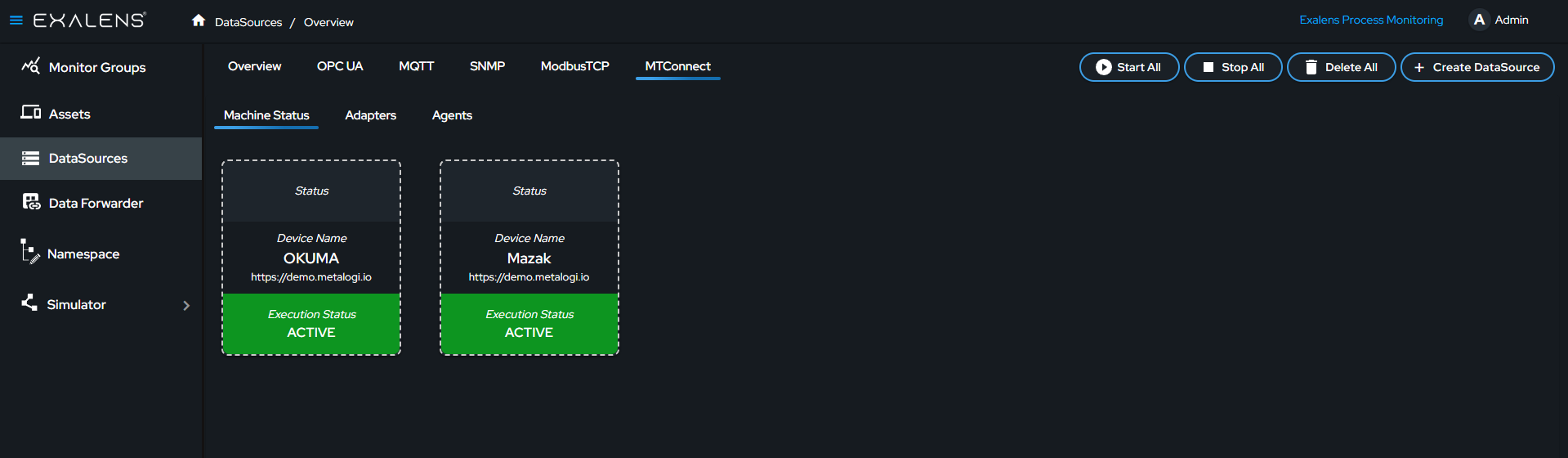

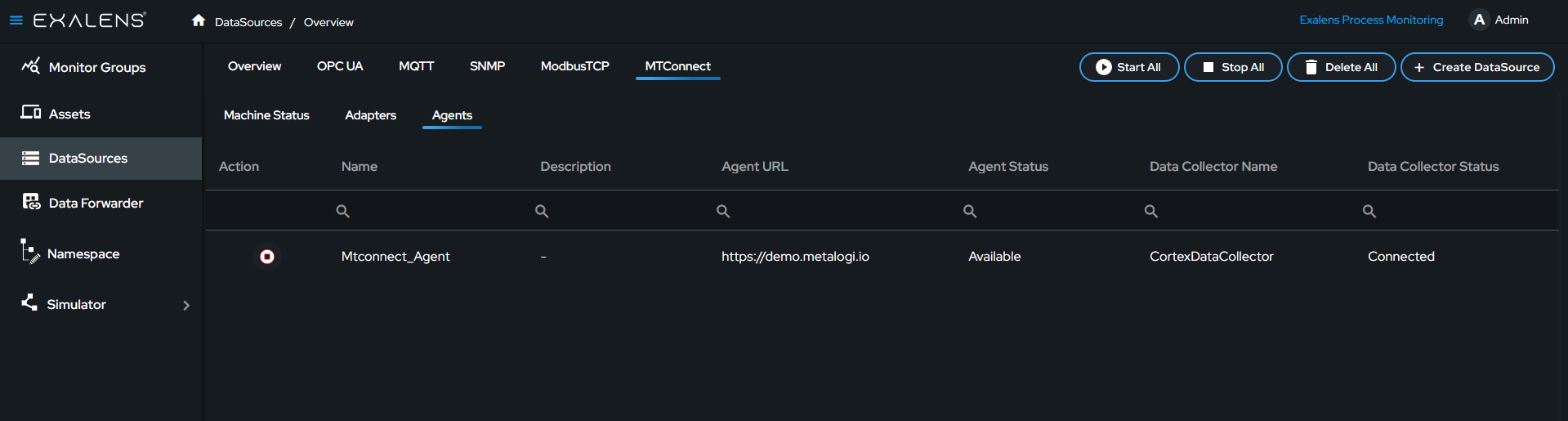

data source client

data source client

Collect and Store​

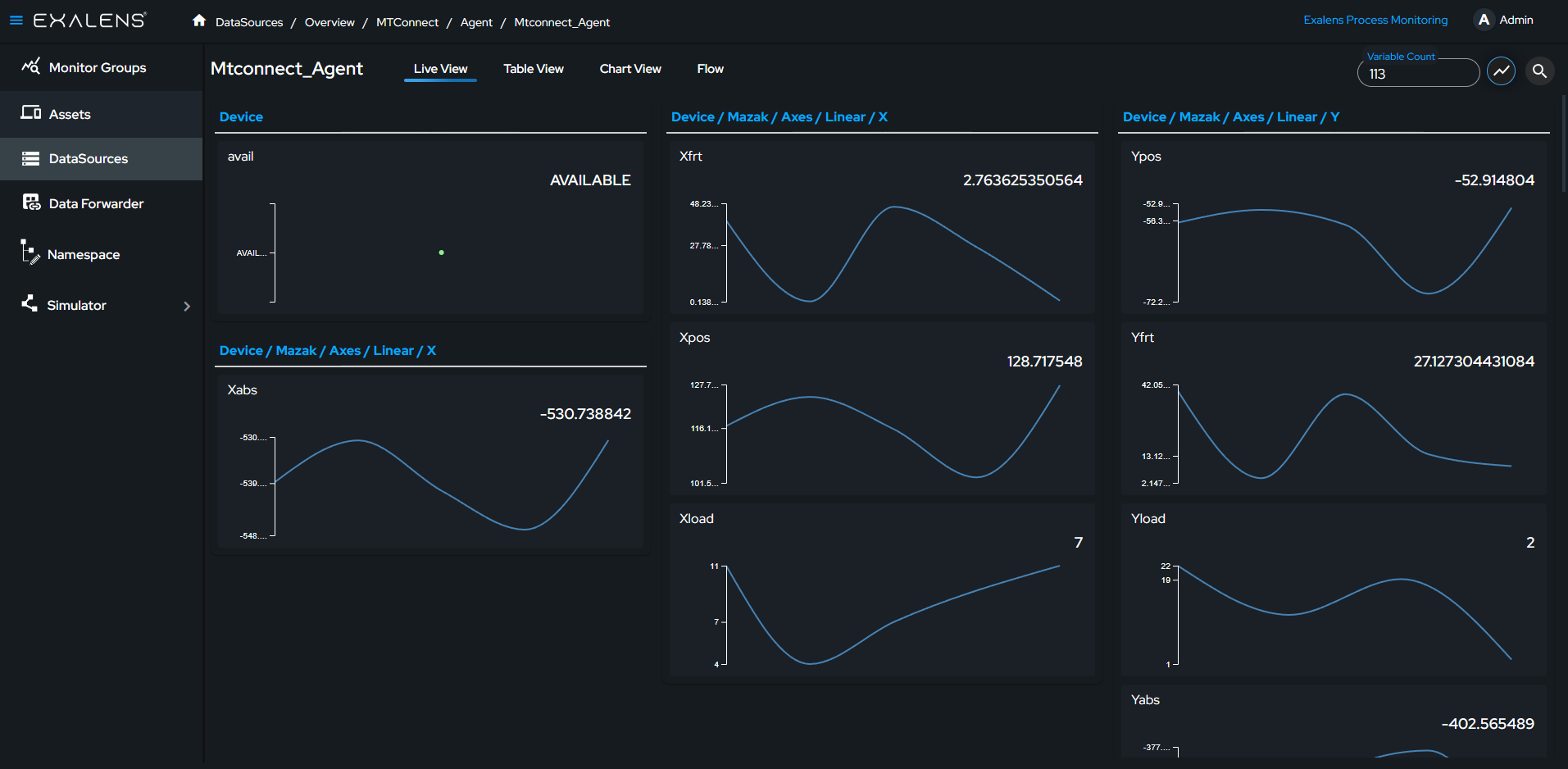

After the data source client is created, click on the data source client. You will be taken to the live view where you can monitor the variable's live data. The data collected from these variables will be stored in a time series database for further analysis and historical reference.

live view

Visualize​

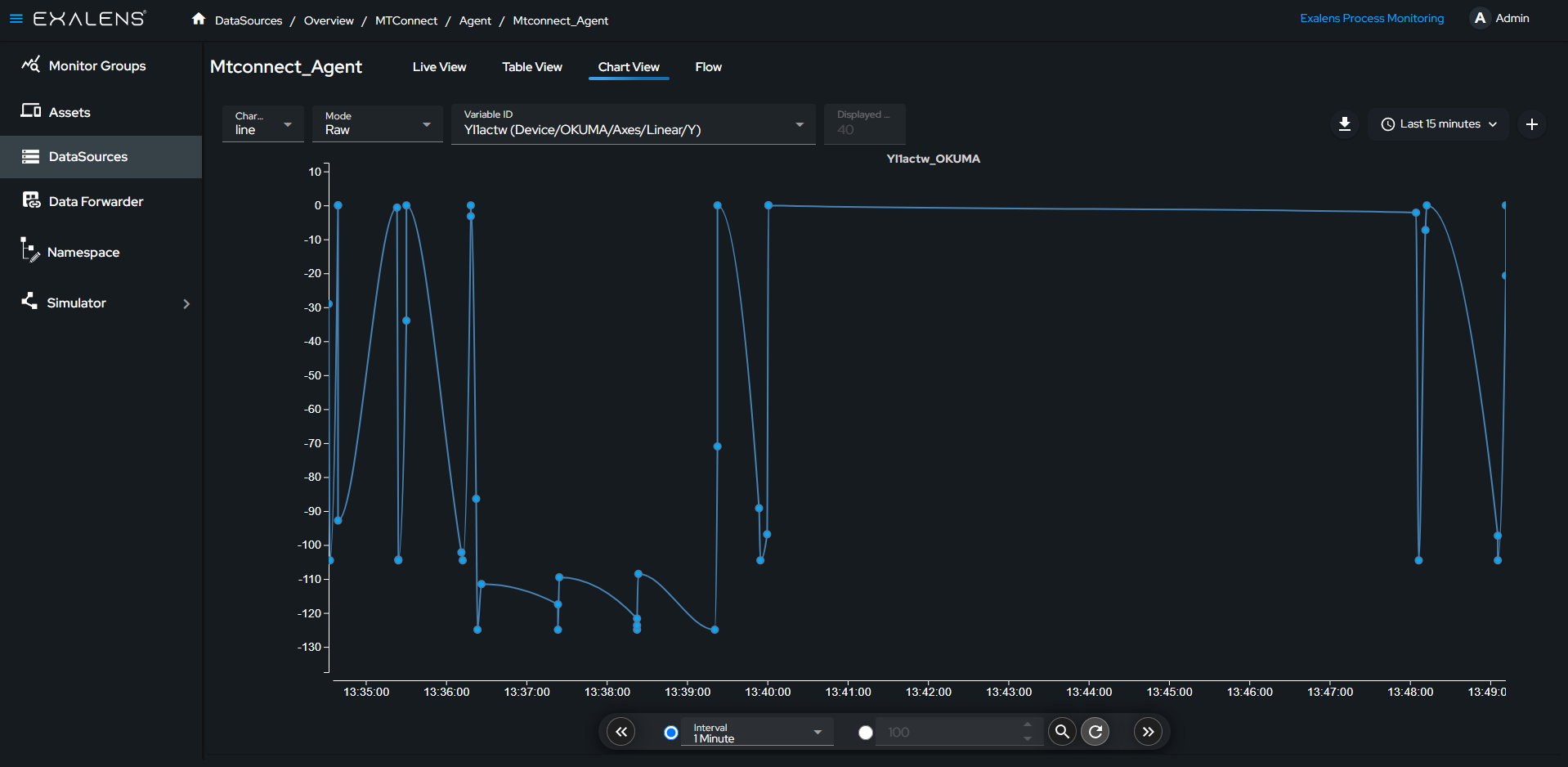

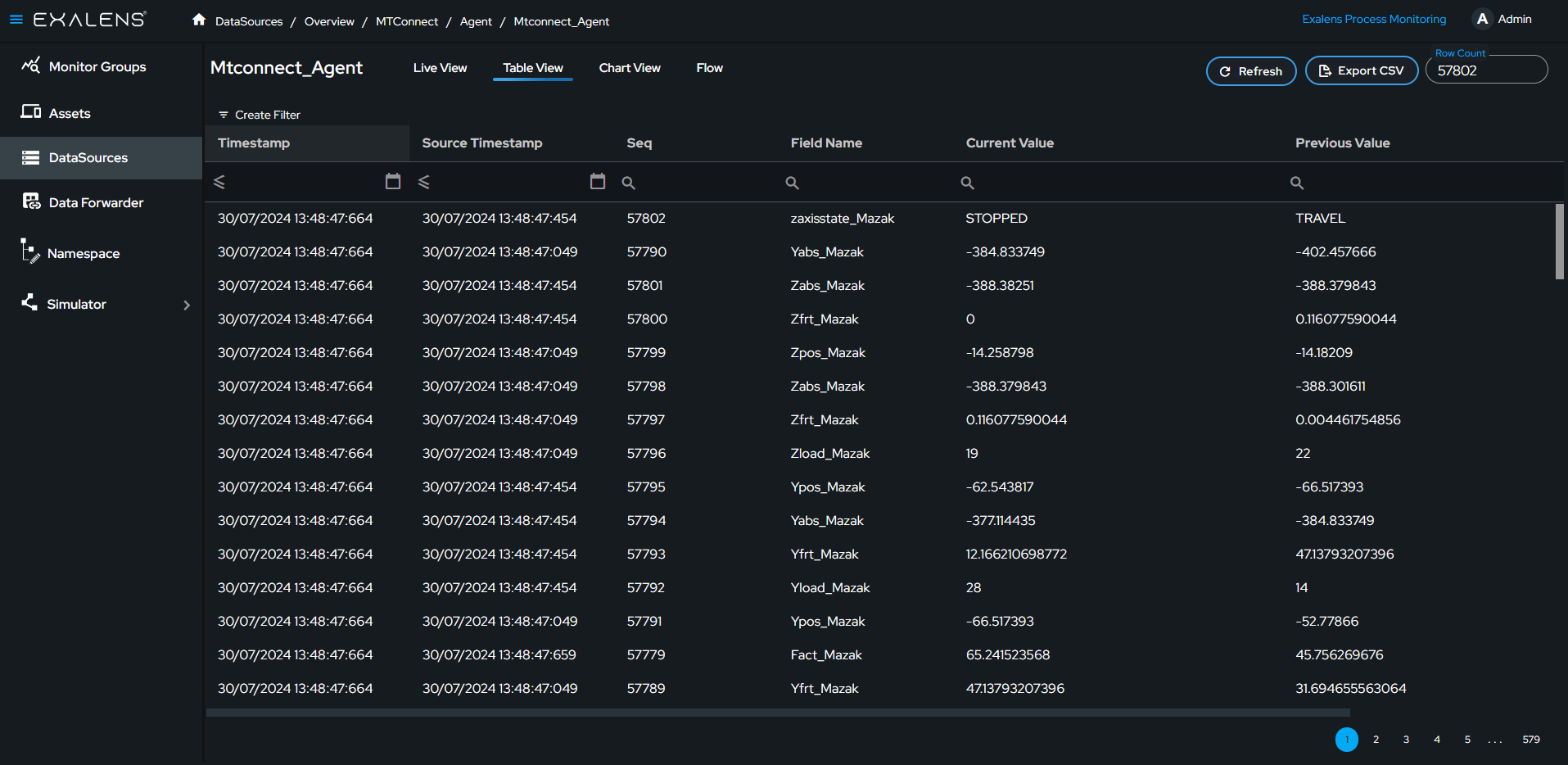

Access the table view to see historical data and recent values. You can filter and export data as a CSV file from this view. The chart view allows you to visualize data trends over time.

Table view

Table view
